Katana
Katana
999CC

Race-developed inline-four engine delivering acceleration.

150HP

Built for track dominance and high-speed precision riding.

106Nm

Lightning-fast launch with advanced electronics support.

6-Speed

Precision control for ultimate rider confidence.

Racing Heritage

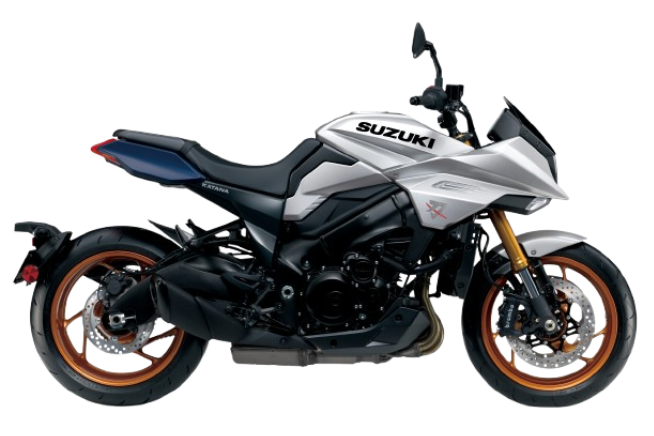

Katana The Edge of Performance

Famed for its abundant power, agility and majestic presence. Legendary for establishing new levels of ultimate sport performance, and for retaining the number one position for the past two decades in the class it created.

Engine type
4-stroke, 4-cylinder, liquid-cooled, DOHC

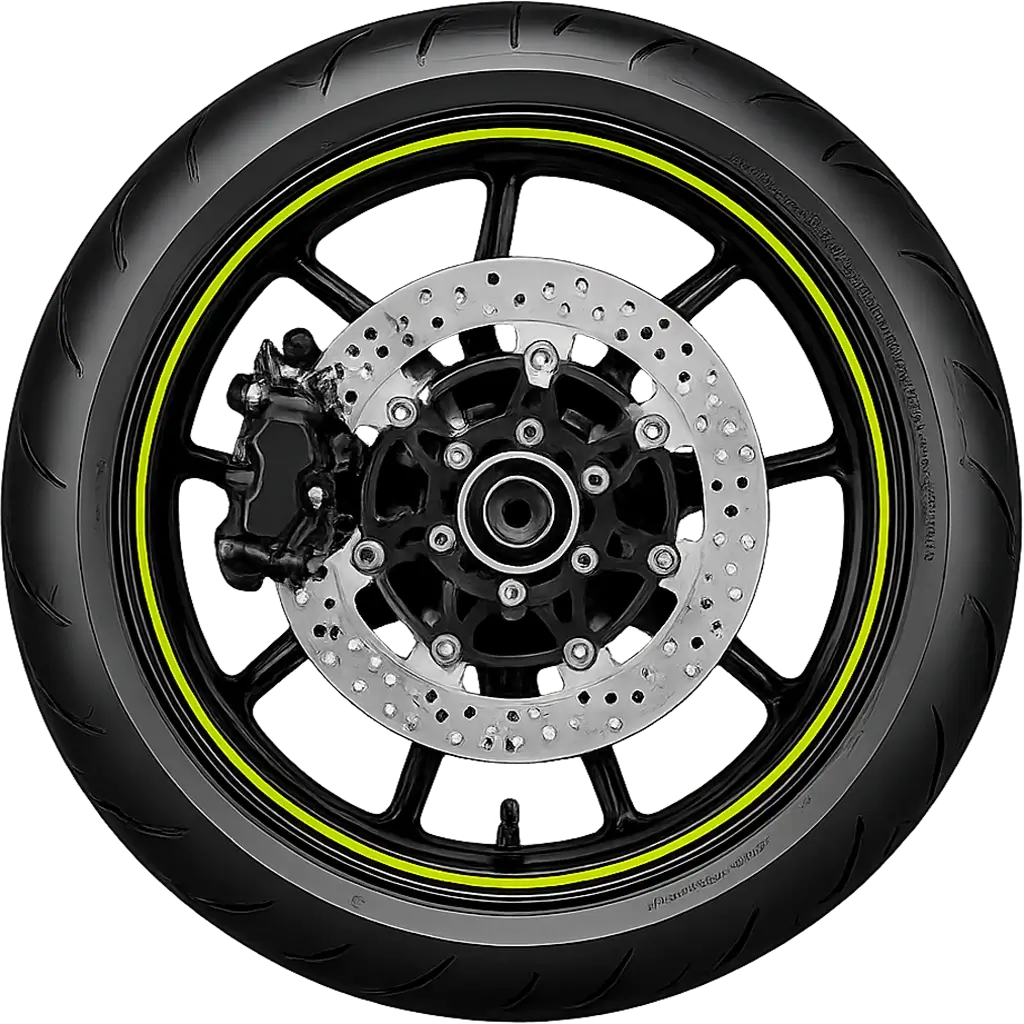

Front brake
Disc, twin
Bore x stroke
73.4 mm x 59.0 mm
Rear brake
Disc
Displacement
999 cm³
Front tire size
120/70ZR17M/C (58W), tubeless
Compression ratio
12.2 : 1
Rear tire size
190/50ZR17M/C (73W), tubeless
Fuel system
Fuel injection
Overall length
2,130 mm
Starter system
Electric
Overall width
835 mm
Ignition system
Electronic ignition (transistorized)
Overall height
1,110 mm
Lubrication system
Wet sump
Wheelbase
1,460 mm
Transmission
6-speed constant mesh
Ground clearance
140 mm
Front suspension
Inverted telescopic, coil spring, oil damped
Seat height
825 mm
Rear suspension
Link type, coil spring, oil damped
Curb mass
215kg
Rake / trail
25° / 100mm
Fuel tank capacity
12 L
Katana//

Suzuki Katana Specifications & Performance Details

Discover the razor-sharp performance, advanced engineering, and full technical specifications of the Suzuki Katana sportbike.

More Information

Everything You Need to Know

A smooth, fast-revving rocket ship that cruises comfortably but turns into a sharp, corner-carving weapon the second you twist the throttle.

01
Engine Type
4-stroke, 4-cylinder, liquid-cooled, DOHC
02
Bore x stroke
73.4 mm x 59.0 mm
03
Compression ratio
12.2:1
04
Fuel system
Fuel injection
05
Starter system
Electric
06
Lubrication system
Wet sump
07
Transmission
6-speed constant mesh
08
Ignition system
Electronic ignition
09
Front suspension
Inverted telescopic, coil spring, oil damped
10
Rake / trail
25° / 100mm
